You have completed the first 48 counts of drill. Let’s move on to the next set. In the final set of the drill we will:

  1. Segment the large arc into two smaller arcs
  2. Draw two new mirrored shapes on count 72 with performers coming from two preexisting arcs
  3. Match the positions of the preexisting arcs on count 48 to positions of the two new mirrored shapes on 72

Click on Page Tab #4. The Yellow Anchor will jump to count 48 and the Red Anchor will jump to count 72.

Select the large arc using a Selection tool.

Click on the Knife tool in the Tool Palette. A Knife/Glue Control Panel will appear

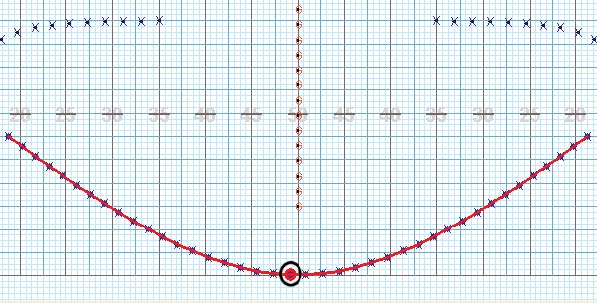

We will cut the arc into two smaller arcs. With your cursor, click on one of the two positions closest to the left of the 50 yard line. A red bubble will appear.

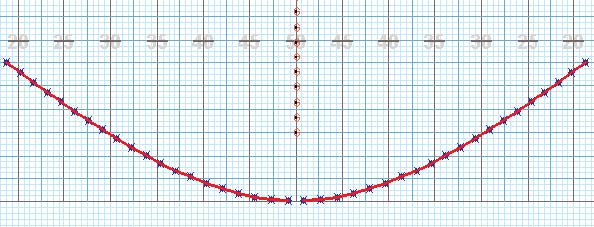

Now click on the other position closest to the 50 yard line. A gap will appear between the two positions indicating the large arc is now two smaller arcs.

Select both arcs again using either the Pointer Selection tool, Box Selection tool, or Lasso tool.

Click on the Curve tool in the Tool Palette. A Curve Tool Control Panel will appear.

In the Curve Tool Control Panel, enter “20” in the Positions text box.

Uncheck the Omit Overlaps option. Check the Predict Next option.

On the field, click the following points to create the shape of the curved form.

LEFT 45 yds 6.00 steps | 16.00 steps
LEFT 35 yds 4.00 steps | 4.00 steps
LEFT 25 yds 0.00 steps | 20.00 steps
LEFT 10 yds 0.00 steps | 12.00 steps

While entering these points, the red editing handles will appear at each point. These editing handles can be dragged to adjust the shape. We are creating this curve with only four points because the fewer number of editing handles the smoother the curves of the shape will be.

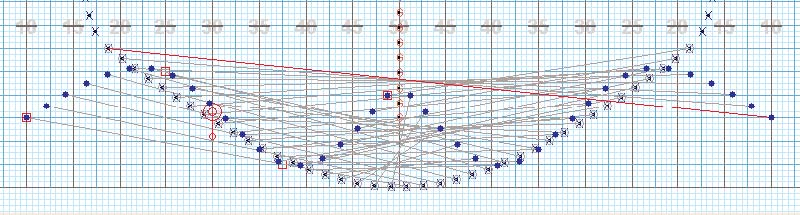

Enter in the Clone text box “1”. Two mirrored shapes of 20 positions will appear.
