Sync Music to Drill

Syncing your music to a drill file is a great way to both visually and audibly preview the drill before hitting the field. You can synchronize an audio file at any point of your design process; whether it be the first or last thing you do to the drill. Some prefer to sync audio before any charting takes place, while others might wait until the drill is finished (or until you get a copy of the audio file, whichever comes first).

A 3D drill file can be synchronized to one of the three following types of audio files:

• MID = MIDI audio file
• WAV = Waveform audio file
• OGG = Ogg Vorbis audio file

We recommend using an OGG file as out of the three, .ogg files tend to be the smallest with the highest quality sound.

*If your audio file is in a format other than the 3 file types listed above, you’ll need to convert the audio file to one of the 3 supported files types. There are many free audio converters available online, however we recommend Audacity for its ease of use.

To sync an audio file, you’ll need to do the following:

Load the Audio File in to Your Drill

With your drill opened, go to the File menu and open Document Options. In the Document Options window, click on the Preferences tab.

Click Choose File for the audio file and select the audio file you wish to sync. Depending on where your audio file is saved, you may need to select Browse to navigate to the exact location of the audio file on your machine.

Once you have selected your audio file, apply the the change in Document Options by pressing OK in the Document Options window.

*Any audio you wish to sync must be saved on your computer. A stream from a web page will not work.

Syncing the Audio File

Once the audio is loaded into your drill file, you’ll then be ready to sync. Press the Sound button in the animation controls on your Count Track.

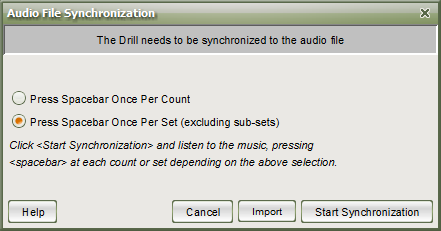

A new window will appear with options on how to sync the audio file.

When syncing audio to a drill, you will be asked to sync by count or page.

Sync Audio by Count

To sync an audio file to a drill by count, choose Start Synchronization. The audio file will begin playing immediately once you press Start Synchronization, so be sure you’re ready to go before pressing this button.

You’ll want to press the [SPACEBAR] on your keyboard for each downbeat in the audio file. Each press of the [SPACEBAR] will advance the audio sync one count. When the sync is complete, press the Done button on the Count Track.

Sync Audio by Set

To sync an audio file to a drill by set, choose Start Synchronization. The audio file will begin playing immediately once you press Start Synchronization, so be sure you’re ready to go before pressing this button.

You’ll want to press the [SPACEBAR] on your keyboard on the 1st count of every transition (excluding sub-sets). This will sync the count data to music between the page tabs. When the sync is complete, press the Done button on the Count Track.

Re-syncing the Audio

Nobody is perfect the first time. If you need to re-sync the audio to the drill, you can clear the current sync by holding your [ALT] key (or [OPTION] on Macintosh) while clicking on the Sound button. A new window will appear, confirming that you wish to clear the current audio sync.

Once the sync has been cleared, you can then re-sync the audio by following the same steps above.

Previewing the Audio Sync with Drill

After the audio file is synchronized, each time you click on the Play button when the Sound button is depressed, the music will be played. This works the same whether you are previewing a chunk of drill, or the entire drill file.
