In one step, we are going to Push the two arcs in two different directions. On the Count Track, make sure the Yellow Anchor is set to count 0 and the Red Anchor is set to count 16.

First, we will need to select the two arcs. Select the Pointer Tool in the Tool Palette.

Click on any position in one of the two arcs. All of the performers in the arc will appear in bold red to indicate the arc is selected.

Press and hold the [SHIFT] key while clicking on any position in the other arc. It will also display in bold red. Holding the [SHIFT] key while selecting a shape will add that shape to any previously selected shapes or positions.

The two arcs are selected. We will choose the Push tool to move these selected arcs to a new location. Select the Push tool in the Tool Palette.

Click on the Left/Right Mirroring option in the Push Tool Control Panel.

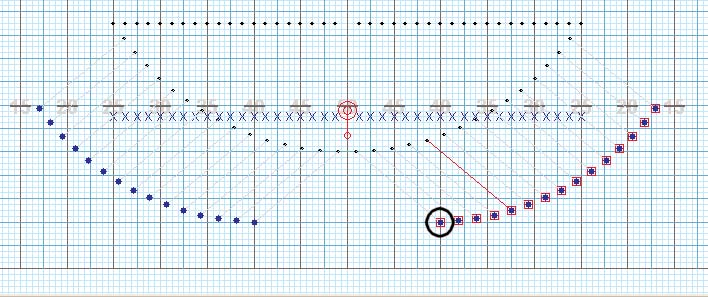

Click on the inside position of the RIGHT arc. Click and drag the position until the Location Indicator reads 40 yds 0.00 steps | 8.00 steps. Both arcs will move in motion mirroring left/right to each other. Light gray lines indicating each selected performer’s path will appear as you move the cursor.

If adjustment needs to be done, simply click and drag the shapes to the desired location. The maneuver will not be committed to the drill until you click the Accept button.

On the left side of the Count Track are the Animation Controls. Click on the Play button to preview the moving arc with the moving lines.

Click on the Accept button to commit the new move to the drill.

Select Save from the File menu to save the changes to the file.
