Adding Page Tabs

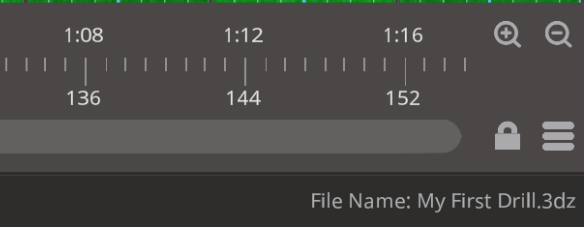

Step 1: Click on the lock icon on the right of the count track.

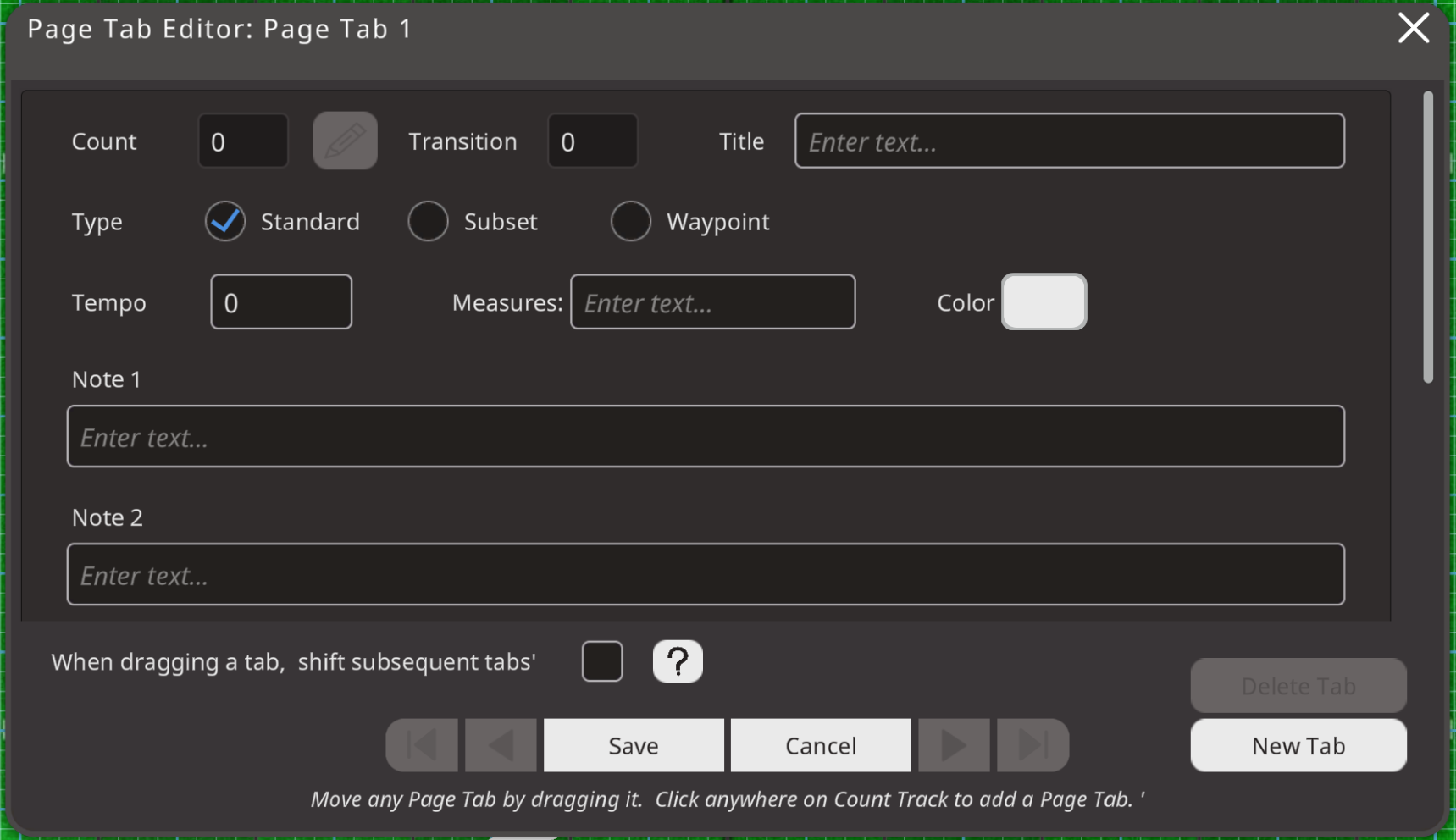

Step 2: This opens the Page Tab Editor. Click New Tab.

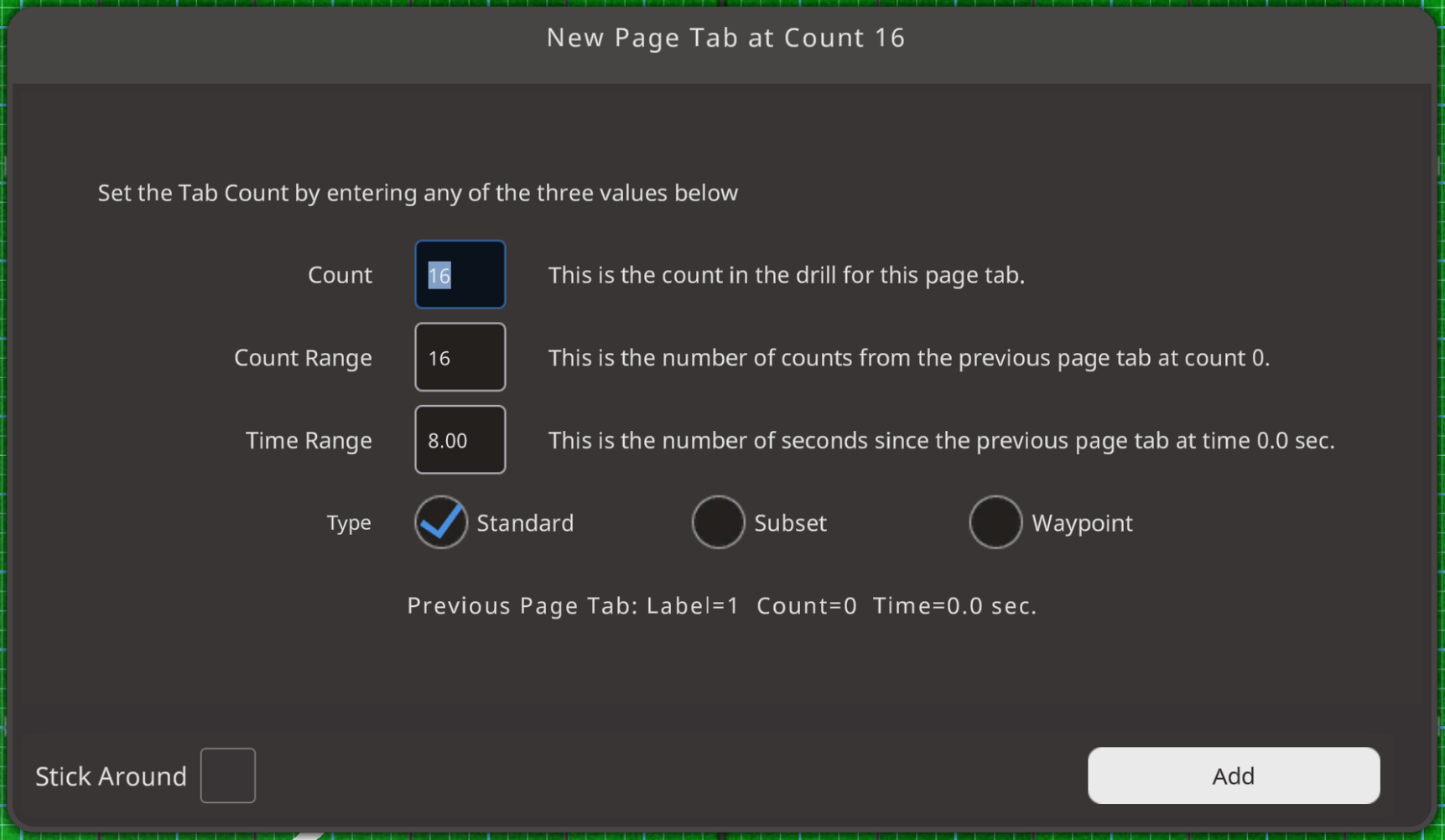

Step 3: Enter a Value

• Count Range: Number of counts from the previous Page Tab (default: 16).
• Time Range: Number of seconds since the previous Page Tab (default: 8).
• Count: The overall count in the drill for this Page Tab (default: 16).

Step 4: Select a Tab Type

• Standard: Creates a normal Page Tab (default).
• Subset: Marks a smaller section within the full transition.
• Waypoint: Marks a reference point.

Step 5: Options

• Stick Around: Keeps this dialog open for adding multiple Page Tabs with the same count structure.

Step 6: Click Add Tab

• This adds the tab to the count track and closes the window if the stick around option is not selected.
