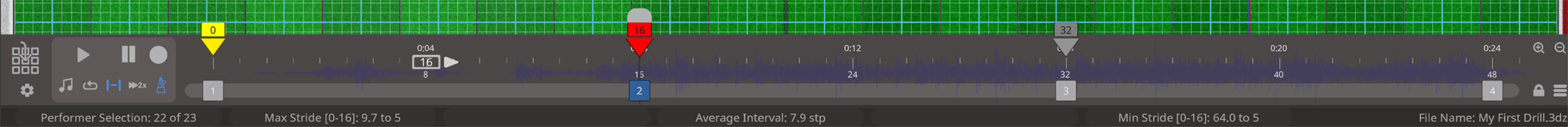

Yellow (Secondary) Anchor: This anchor indicates the location that is referenced in any tool to start creating the animation from. This can also be referred to as the previous set.
Red (Primary) Anchor: This anchor indicates the location that is referenced in any tool where the drawing or editing of the form is created. Animation is created between the secondary and primary counts. This can also be referred to as the current set.
Gray (Continuity) Anchor: This anchor will be available if there is a drill set designed after the primary anchor. This allows you to see the transition that is being affected by the changes made at the primary count. This is shown typically when rewriting or redesigning previously written sets.
Zoom In: This will zoom the count track in increasing the distance between counts visually. Allows less counts to be viewed.
Zoom Out: This will zoom the count track out, decreasing the distance between the counts. Allows more counts to be viewed.
Page Tab Lock: This will turn on or off the page tab editor allowing for the addition and editing of page tabs on the count track.
Count Track Layers: This opens the count track layer dialog. You are able to add, edit or remove additional Tab Track Layers.
