File → Export to UDB uploads the open drill to your ensemble’s UDBapp, where your performers see their own drill. The export has four tabs: Sign In, Export File Name, Terminology, and Page Tab Selection.

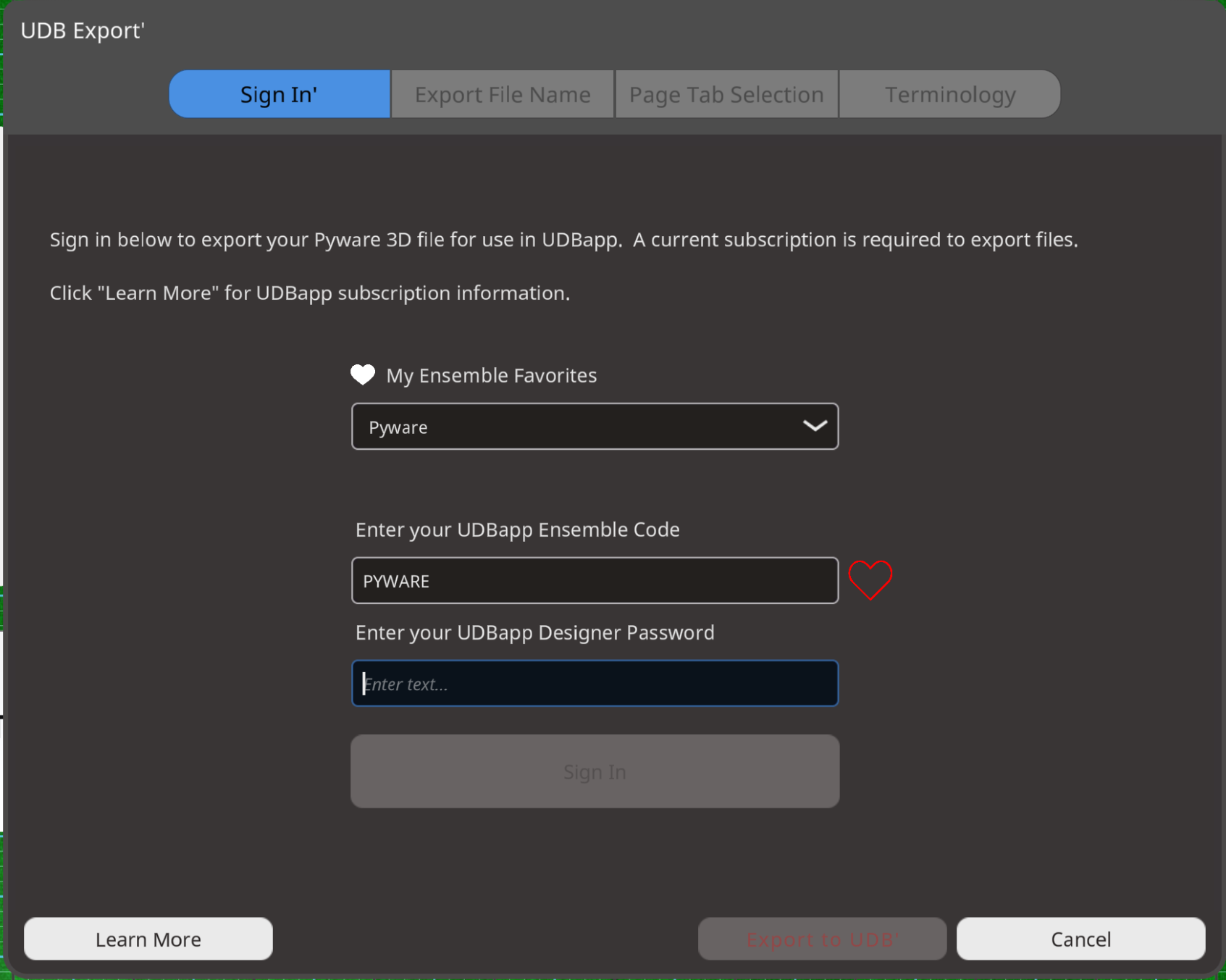

Sign In

UDB Sign In
  1. Enter your UDBapp Ensemble Code and Designer Password (UDBapp provides both).
  2. Click Sign In. When it succeeds, the title reads UDB Export to Ensemble with your ensemble, and the other tabs open.

3DX remembers the last ensemble you signed in to. To save one for later, click the favorite icon and give it a title; pick it next time from My Ensemble Favorites, or click the icon again to remove it. Your ensemble favorites follow you to every device you sign in to (see Settings).

Export File Name

  • Upload as a NEW song: add the drill to the ensemble as a new song, named after the drill unless you change the Song Title.
  • Upload to an EXISTING song (overwrites existing): replace a song you pick from the list.

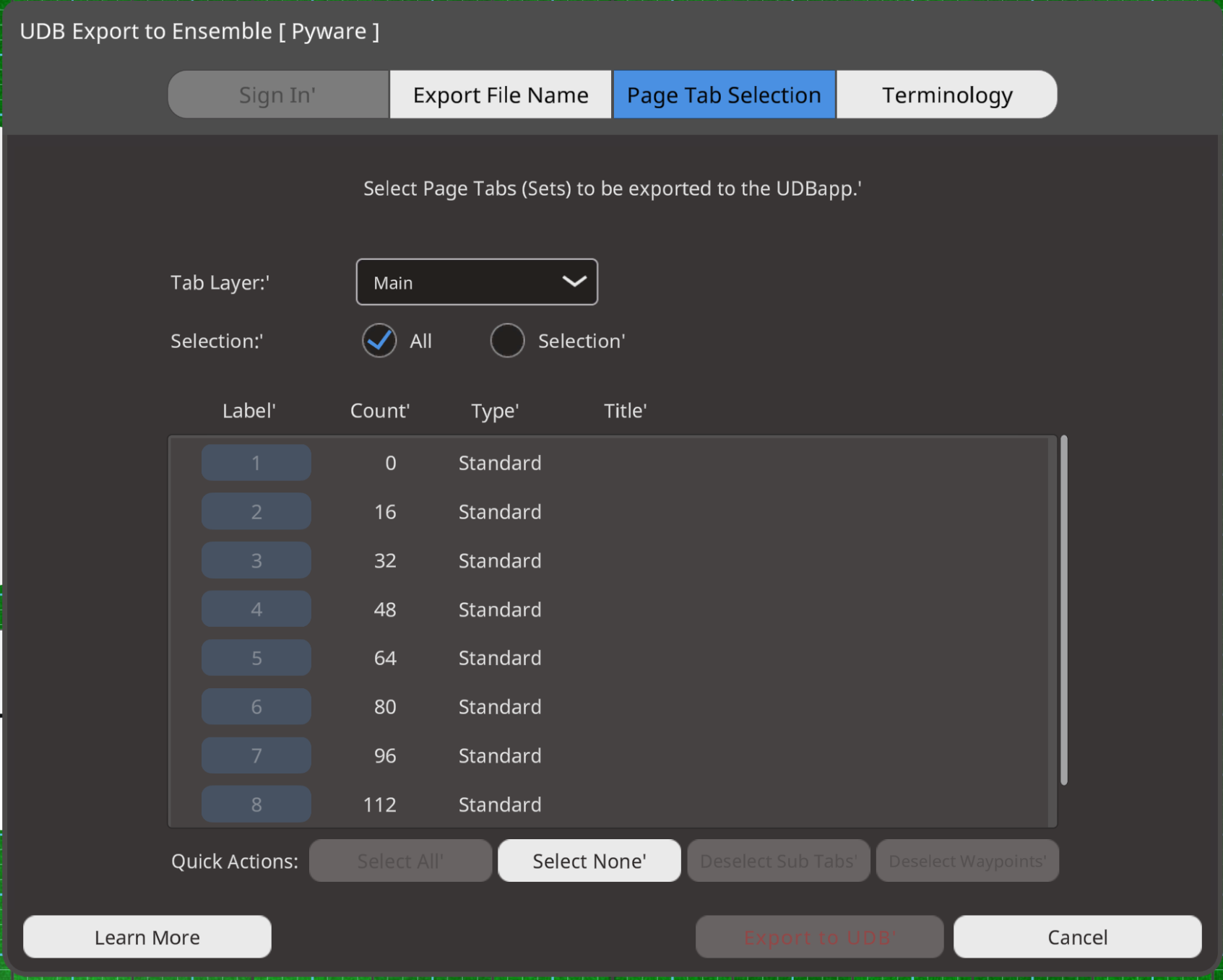

Page Tab Selection

  • Tab Layer: which page tab layer to export.
  • All or Selection: export every set, or only the ones you check. Customize Tabs to Export takes you to the list.
  • Quick Actions: Select All, Select None, Deselect Sub Tabs, and Deselect Waypoints.

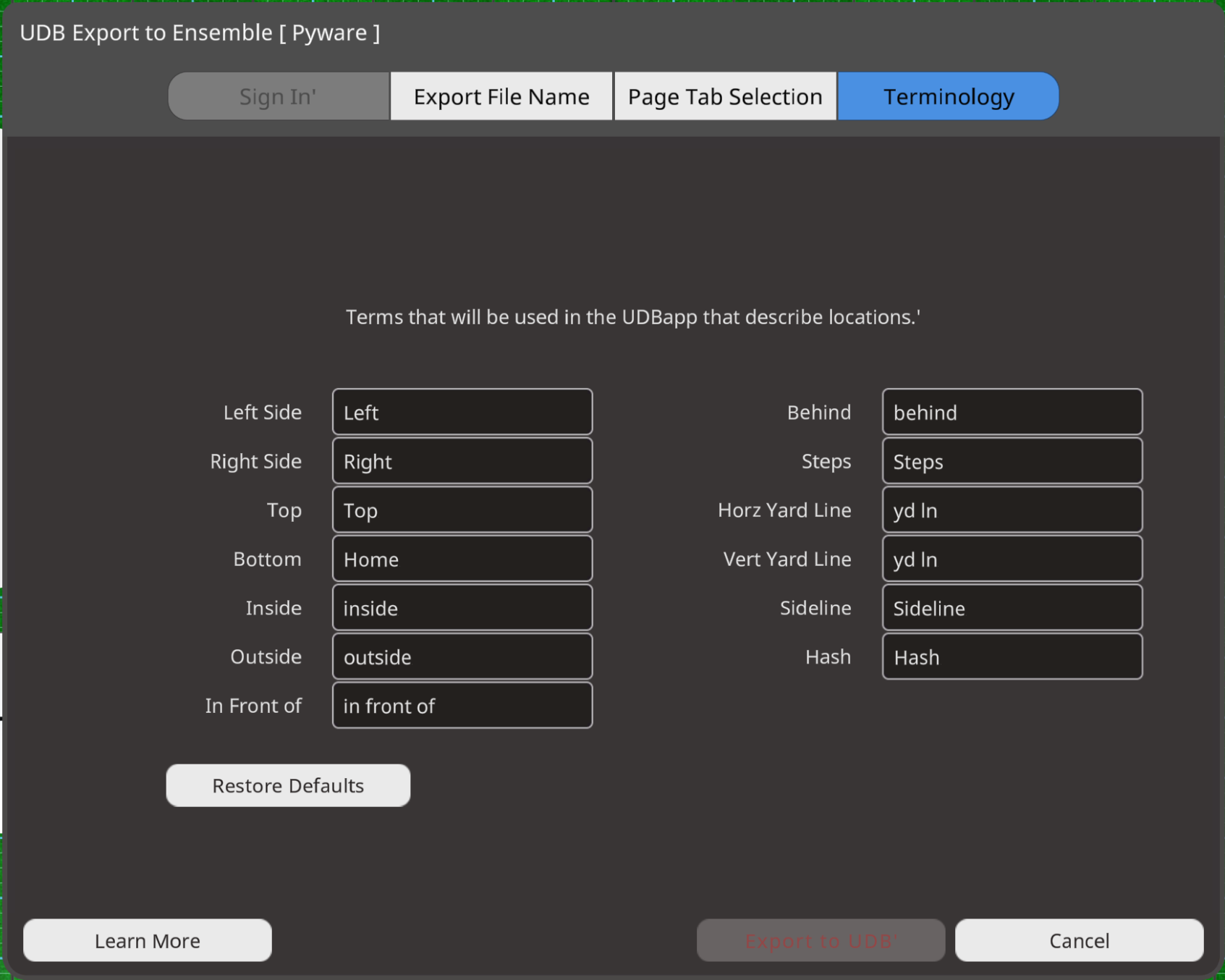

Terminology

UDB Grid Terminology

These are the words your performers’ app uses to describe positions: Left Side, Right Side, Top, Bottom, Inside, Outside, In Front of, Behind, Steps, Horz Yard Line, Vert Yard Line, Sideline, and Hash. They’re saved with the drill.

  • Save Terms As Favorites: keep the current terms as your own favorites on this device.
  • Reset Terms to Favorites: load your favorites into this drill.
  • Restore Defaults: go back to 3DX’s standard terms.

Uploading

Click the export button and confirm. 3DX uploads the drill and the status bar follows its progress – uploading, queued, and processing – until UDB File Upload Complete! The ensemble’s UDBapp then has the song. Large drills can take several minutes to process; if it runs long, 3DX asks whether to keep waiting. Cancel stops an upload in progress.

Messages

  • Invalid ensemble code or password. Check the code and designer password with your UDBapp account.
  • Could not connect to the UDB server. Check your internet connection and try again.
  • Your UDB subscription has expired. Renew your UDBapp subscription.
  • UDB Export is not available on this license. Your 3DX license doesn’t include UDB export.
  • Some files this drill uses were not found and are NOT included in the upload. A music file, image, or other file the drill uses has moved. Relink it, or upload without it.
  • The export file is too large to upload. Export fewer sets, or remove large props.
  • A UDB upload is still in progress. Wait for the current upload to finish.
  • The file finished uploading but the server’s reply never arrived. The song may already be replaced – check the ensemble in UDBapp before uploading again.
