Print Charts

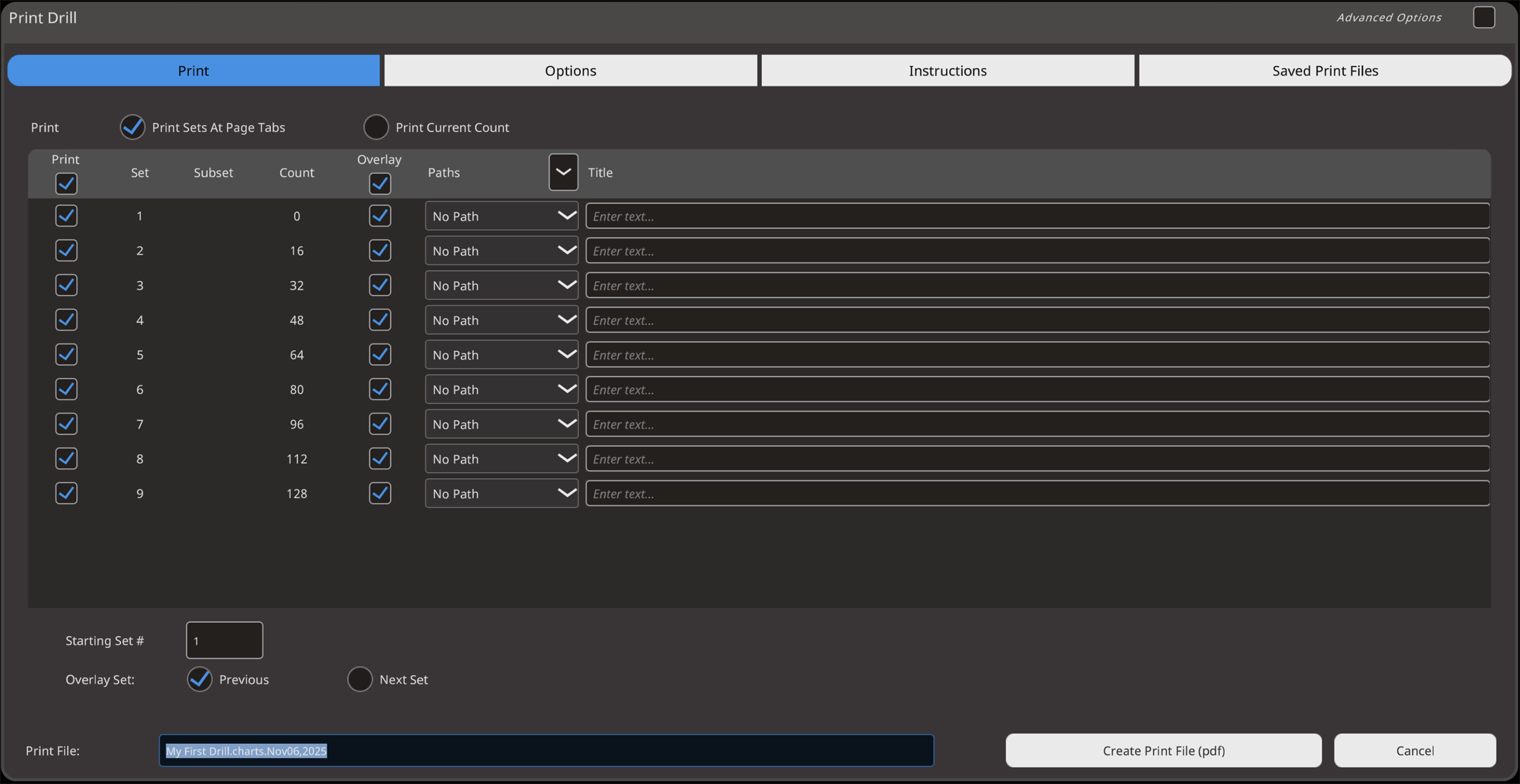

Print Sets at Page Tabs: This option will show all page tabs in the table below to select the pages you want to print.
Print Current Count: This option will show only the set at the count selected where the Primary (red) anchor is.
Print: This indicates if the page will be printed.
Set: This is the set number for the page.
Subset: This option will set the page tab to a subset or not. Editing this will also edit the production sheet.
Count: This is the count that the set is on.
Overlay: This option will print the secondary overlay dots on the chart.
Paths: This will set what style of paths will be printed on the chart for all performers. The options are No Paths, Each Step and Path Midpoints.
Title: This is the set title. Editing this will also edit the production sheet.
Starting Set #: This edits the starting set number of the drill. It will renumber all of the subsequent tabs based on this value.
Overlay Set: This option will allow you to print the previous set or the next set as an overlay set based on the setting in the Print Table for the page.
Print File: This is the name of the PDF file that will be saved.
Create Print File (PDF): This creates the PDF file of the drill charts.
Cancel: This will cancel the print window.

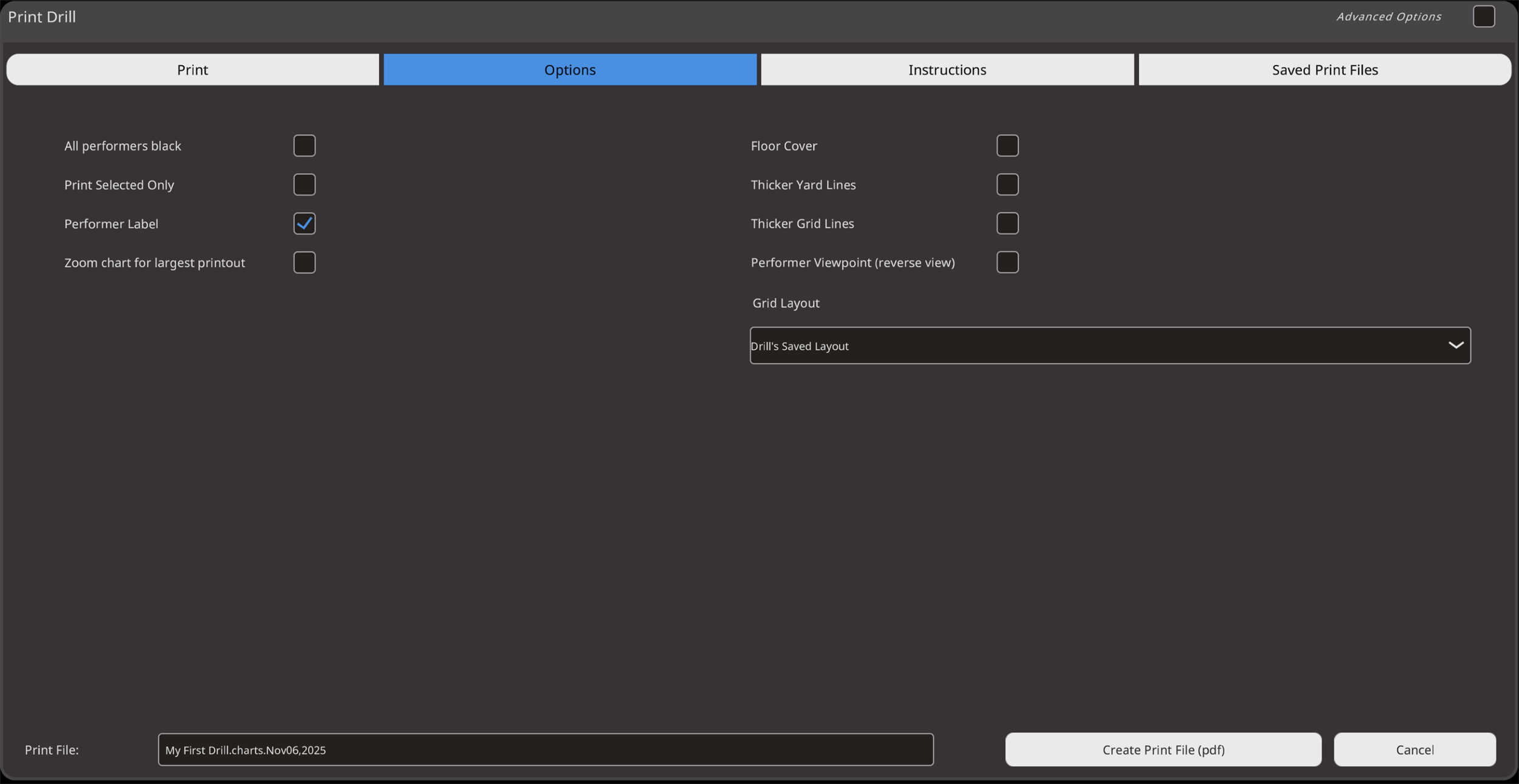

All Performers Black: This option prints all performers as black instead of their set color.
Print only Selected:
Performer Label: This option will print the performer label.
Zoom chart for Largest Printout: This option will zoom the chart to fit the performers into the printout area optimally.
Floor Cover: This option will print the floor cover image.
Thicker Yardlines: This option will thicken the Yard lines on the printout. These are Major Division Lines in the grid designer.
Thicker Gridlines: This option will thicken the step grid on the printout.
Grid Layout: Select the grid layout you want to use when printing the charts.

Title Font Size: This sets the font size of the set title on the chart printout.
Set Info Size: This sets the font size of the set information on the chart printout.
Transition Counts: This option prints the transitional count information on the chart.
Merge Subset Counts: This option merges the counts from non printed subsets into the transitional count total of the next printed normal set.
Measures: This option prints the measure information from the production sheet on the chart.
Audio Sync Time: This option prints the audio sync time on the chart.
Tempo: This option prints the tempo from the production sheet on the chart.
Set Title: This option prints the set title from the production sheet on the chart.
Date & Time: This option prints the current date and time on the chart.
Merge All Tab Layer Notes: This option will merge all notes that are on the same count on each layer.
Production Sheet Notes Font Size: This sets the font size of the notes printed on the bottom of the page from the production sheet.
Notes: These options will print the notes from the production sheet from the corresponding notes column.

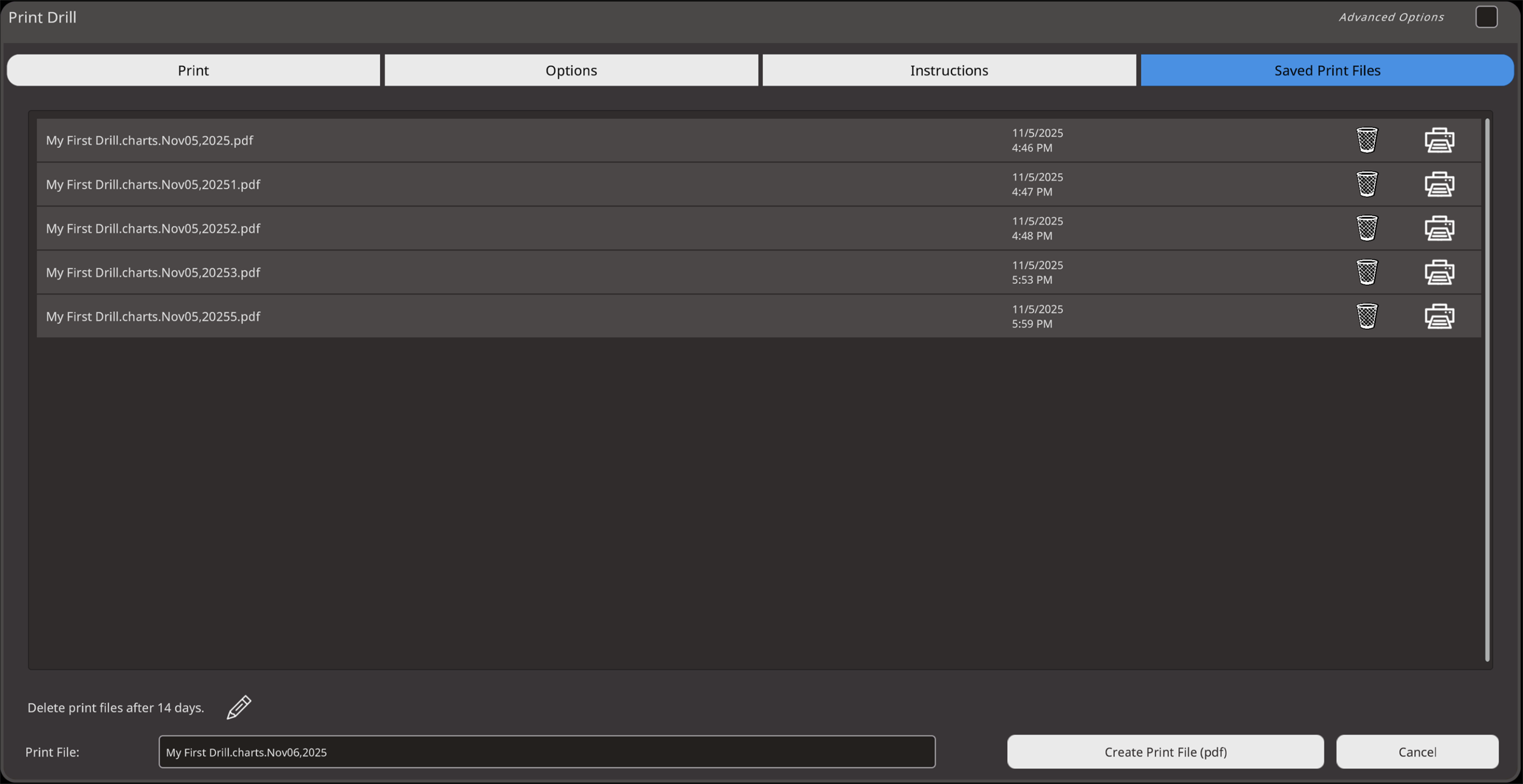

Saved Files Table: This table will show all printed files available.
Trash: This will delete the print file from your computer.
Printer: This will open the PDF file for you to print or share.
Delete print files after ___ Days: This will set the auto deleting of the print files to preserve space on the computer. Files are only deleted from the Print Files Folder in the Pyware 3D folder. Any files moved out of this folder are no longer modified.
