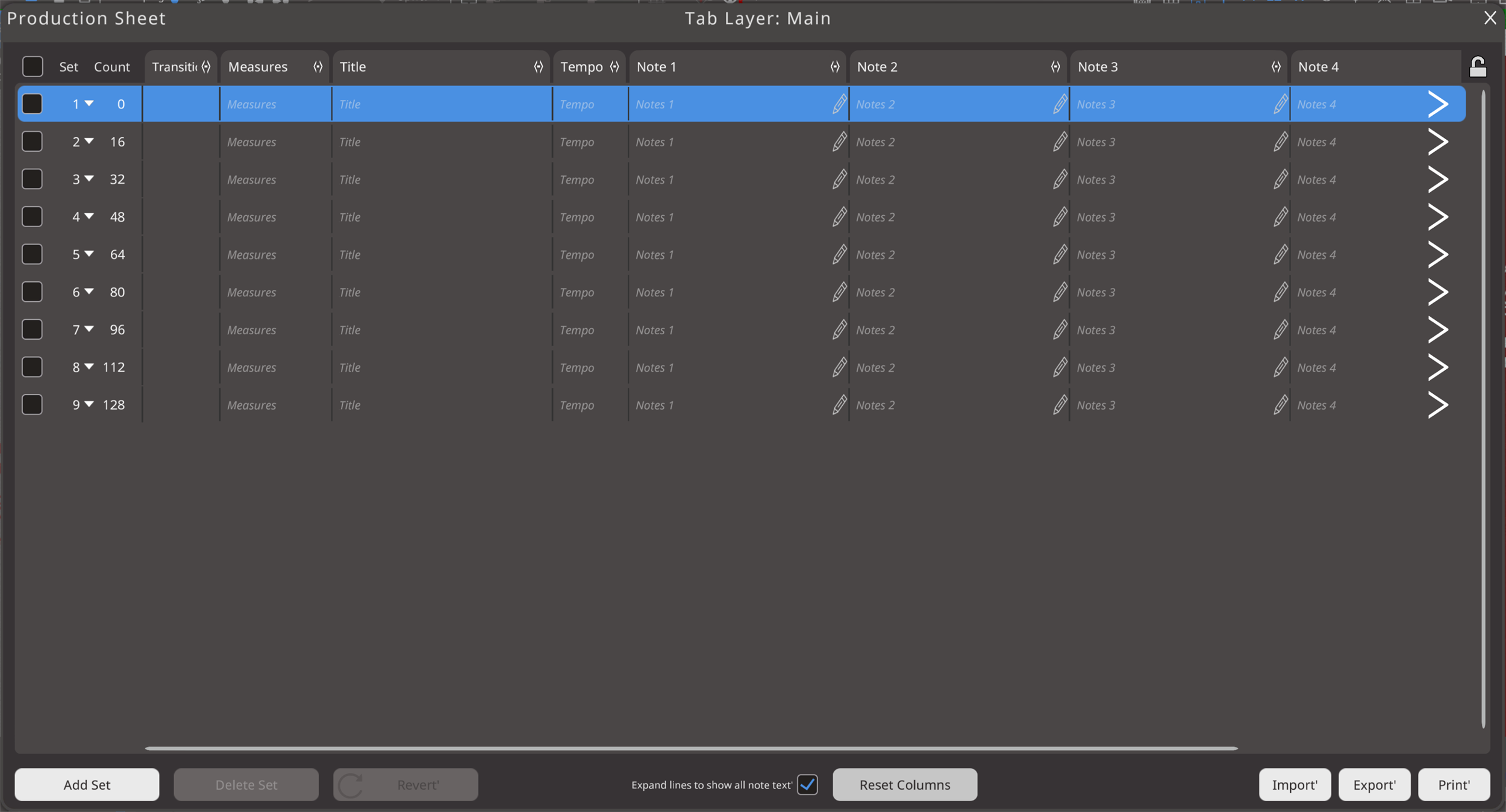

Production Sheet

Columns

• <->: This will allow the adjustment of the column width.
• Selection: Tabs that are selected will have all edits applied to them.
• Set: This is the set number of the page tab. Clicking on this will allow the tab type to be changed. (Available Types: Standard, Subset, and Waypoint)
• Count: This is the count that the page tab is placed. To change the tab needs to be shifted on the count track or in the page tab editor.
• Transition: This is the transitional counts between this set and the previous set.
• Measures: This is custom editable field for set Measure information.
• Title: This is custom editable field for set Title information.
• Tempo: This is custom editable field for set Tempo information. This tempo information is also used to automatically sync by tab tempo.
• Note 1: This is custom editable field for set Note information.
• Note 2: This is custom editable field for set Note information.
• Note 3: This is custom editable field for set Note information.
• Note 4: This is custom editable field for set Note information.
• Note 5: This is custom editable field for set Note information.
• Lock: This will lock the column widths from being adjusted
• >: This will jump to selected Tab.

Action Buttons:

• Add Set: Creates a new set at a the count entered.
• Delete Set: Deletes the selected sets.
• Revert: Revert the changes made in the Production Sheet.
• Expand lines to show all note text: This will automatically expand the rows to fit the note information.
• Reset Columns: Reset the column widths to default.
• Import: This opens a window to select a production sheet to be imported to the current drill.
• Export: This opens a windows to export the current drill production sheet.
• Print: This will print the production sheet from the current drill.
