Free Form Tool

The Free Form tool allows you to draw freely without the restriction of a certain shape. This tool would be most similar to a paintbrush/pencil/pen tool of graphic design applications.

For NEW performers, set the Red and Yellow Anchors on the Count Track to the count at which you wish the free form shape to be drawn. To transition EXISTING performers into a free form shape, move the Red Anchor to the count where the selected performers should “hit” the free form shape. Move the Yellow Anchor to the beginning count of the transition into the new shape. This is usually the previous set in the drill. Select the existing performers that will be moving into the free form shape using a Selection Tool. See the Drawing Tools overview for more explanation between new performers and transitioning existing performers.

Clicking on the Free Form tool will display the Free Form Control Panel.

Drawing a Free Form Shape

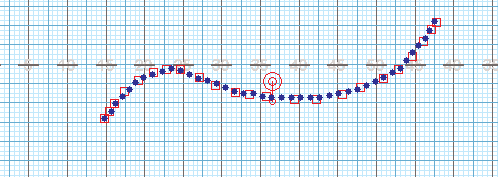

The free form is drawn by clicking points on the field display. The first click on the field is the first endpoint of the free form. The second click on the field places an editing handle at the second point of the free form shape. By continuing to click on the field you add more editing handles that extend the shape.

You could also draw a free form shape by continuously holding the mouse button while moving the mouse across the field.

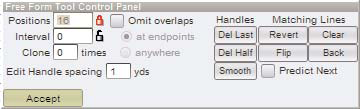

Free Form Tool Control Panel Options

Edit Handle Spacing allows you to adjust the frequency that new editing handles (red box) are added to a shape while drawing. For example, if you enter “2” the in Edit Handle Spacing box, while using the Free Form tool, an edit handle will appear every two yards on the shape you create.

The Del Last button is used to remove the last entered point when creating the free form.

The Del Half button is used to halve the number of points entered by deleting every other point entered on the field. This is useful if you have too many points to form a smooth shape.

Many of the options in the Free Form Tool Control Panel are exactly the same as options in the Line tool. Refer to the Line tool for details on the Clone, Symbol, Color, Editing Handles, and Reposition Handles. See Matching Lines for an explanation of the Matching Lines functions.
